Shipping, tax, and handling costs is not included in the price.
|
|

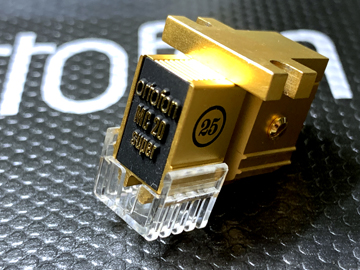

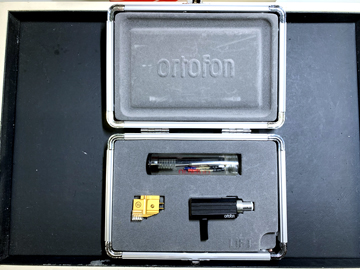

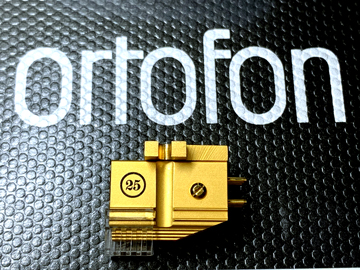

Ortofon MC-20 Super 25 Years Anniversary MC cartridge, comes with original packing, original headshell, tools and user manuel.
The MC 20 Super of 2010 anno supplied mounted on a high-quality adjustable aluminum headshell. The supplied headshell will allow a correct alignment on the Ortofon tonearm series with standard headshell connector. The MC 20 Super can also be used on most tonearms with fixed headshell.
Features: Acclaimed Nude FG-70 stylus on aluminium cantilever
- Wide Range Damping (WRD)
- High rigidity extruded aluminium construction plus aluminium cover/housing
Output: 0.25 mV
Channel balance: < 1.0 dB
Channel separation: > 25 dB
Frequency range at -3dB: 20~25000 Hz
Frequency response: 20~20000 Hz +/- 2 dB
Tracking ability at 315Hz at recommended tracking force: > 80 µm
Compliance, dynamic, lateral: 15 um/mN
Stylus type: Nude FG-70
Stylus tip radius: r/R 6/70 um
Stylus pressure range: 1.6~2.0 gram (16-20 mN)
Stylus pressure recommended: 1.8 gram (18 mN)
Tracking angle: 20 degree
Internal impedance: 5 Ohm
Recommended load impedance: > 10 Ohm
Cartridge body material: Aluminium
Cartridge colour: Gold
Net weight: 9 gram
Headshell net weight: 10 gram |
|
|
| Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered. |
|
