Shipping, tax, and handling costs is not included in the price.
|
|

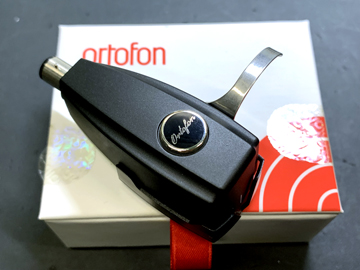

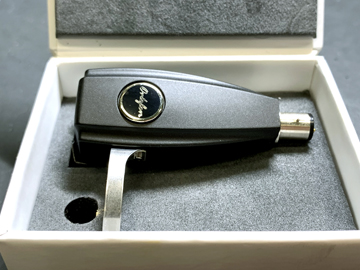

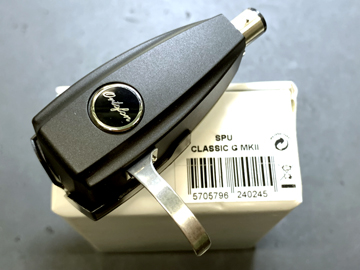

In excellent like new condition Ortofon SPU Classic MK II MC cartridge, comes with original packing box and user manuel.
The SPU Classic GE MkII is known for its dynamic and powerful sound reproduction.
The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The SPU Classic GE MkII”¦s elliptical stylus profile provides more detailed sound reproduction and expansive imaging.
Type: Integated headshell moving coil cartridge
Channel balance at 1 kHz: 0.2 mV
Output voltage at 1 kHz, 5cm/sec: 0.2 mV
Channel separation at 1 kHz: 20 dB
Frequency response 20~20 kHz: 3/ -2 dB
Tracking ability at 315 Hz: 60 um
Compliance, dynamic, lateral: 8 um/mN
Stylus: Nude Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 3.0~5.0 g (30~50 mN)
Tracking force, recommended: 4.0 g (40 mN)
Tracking angle: 20 degree
Internal impedance, DC resistance: 2 ohm
Recommended load impedance: 10 ohm
Coil wire material: High Purity Copper (OFC)
Cartridge body material: Ground wood and resin composite
Cartridge colour: Black matte
Net weight: 28 gram |
|
|
| Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered. |
|
