Shipping, tax, and handling costs is not included in the price.
|
|

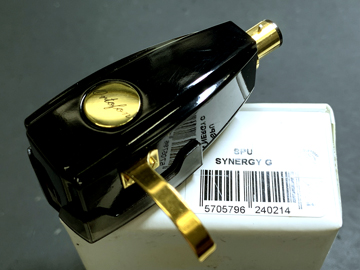

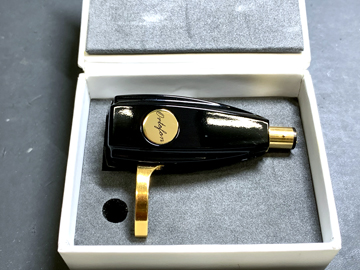

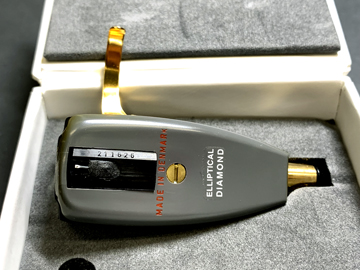

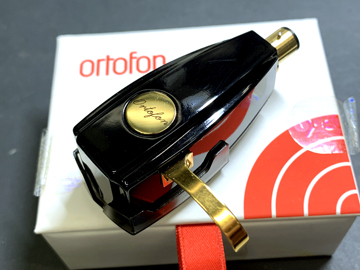

In excellent like new condition Ortofon SPU Synergy G MC cartridge, come with original packing box and user manuel.
The SPU Synergy G modernizes the classic SPU design with a number of optimizations designed for optimum compatibility and sonic purity.
The SPU Synergy features a wood-based housing and has a revised generator system which allows for a maximum output of 0.5 mV, relaxing the requirement for high gain transformer or active preamplification systems.
Type: intergated headshell moving coil cartridge
Channel balance:at 1 kHz: 1.5 dB
Output voltage at 1 kHz 5cm/sec: 0.5 mV
Channel separation at 1 kHz: 23 dB
Frequency response: 20 Hz ~ 20 kHz 2 dB
Tracking ability at 315 Hz: 60 um
Compliance, dynamic, lateral: 8 um/mN

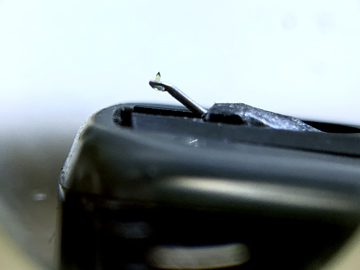

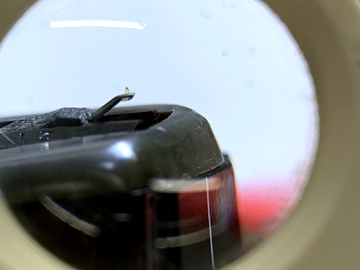

Stylus: Nude Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force range: 3.0~4.0 g (30~40 mN)
Tracking force, recommended: 3.5 g (35 mN)
Tracking angle: 20 degree
Internal impedance, DC resistance: 2 ohm
Recommended load impedance: 10~50 ohm
Coil wire material: High Purity Copper (OFC)
Cartridge body material: Ground wood and resin composite
Cartridge colour: Shiny Black
Net weight: 28 gram |
|
|
| Goods sold are not returntable. Subject to terms and conditions exchange of goods can be considered. |
|
